1U Rack-Mount 8-Channel 3G-SDI Fiber Converter | 1080p@60Hz Uncompressed Transmission | CWDM & Loop Out | Single LC Fiber Extender Up to 20KM | Updated Structural Design
$1,399.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.garofitakozmetika.hu.radiatus.hu
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$1,399.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.garofitakozmetika.hu.radiatus.hu
Free 30-day returns Details
Product details
| Management number | 211044270 | Release Date | 2026/04/04 | List Price | $559.60 | Model Number | 211044270 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [60Hz, 3Gbit/s]—The Fiber Converter supports 1080P@60Hz resolution ratio and automatic reclocking 270Mbit/s-1.48Gbit/s-3Gbit/s, It can transfer full digital non-compression broadcast level video.

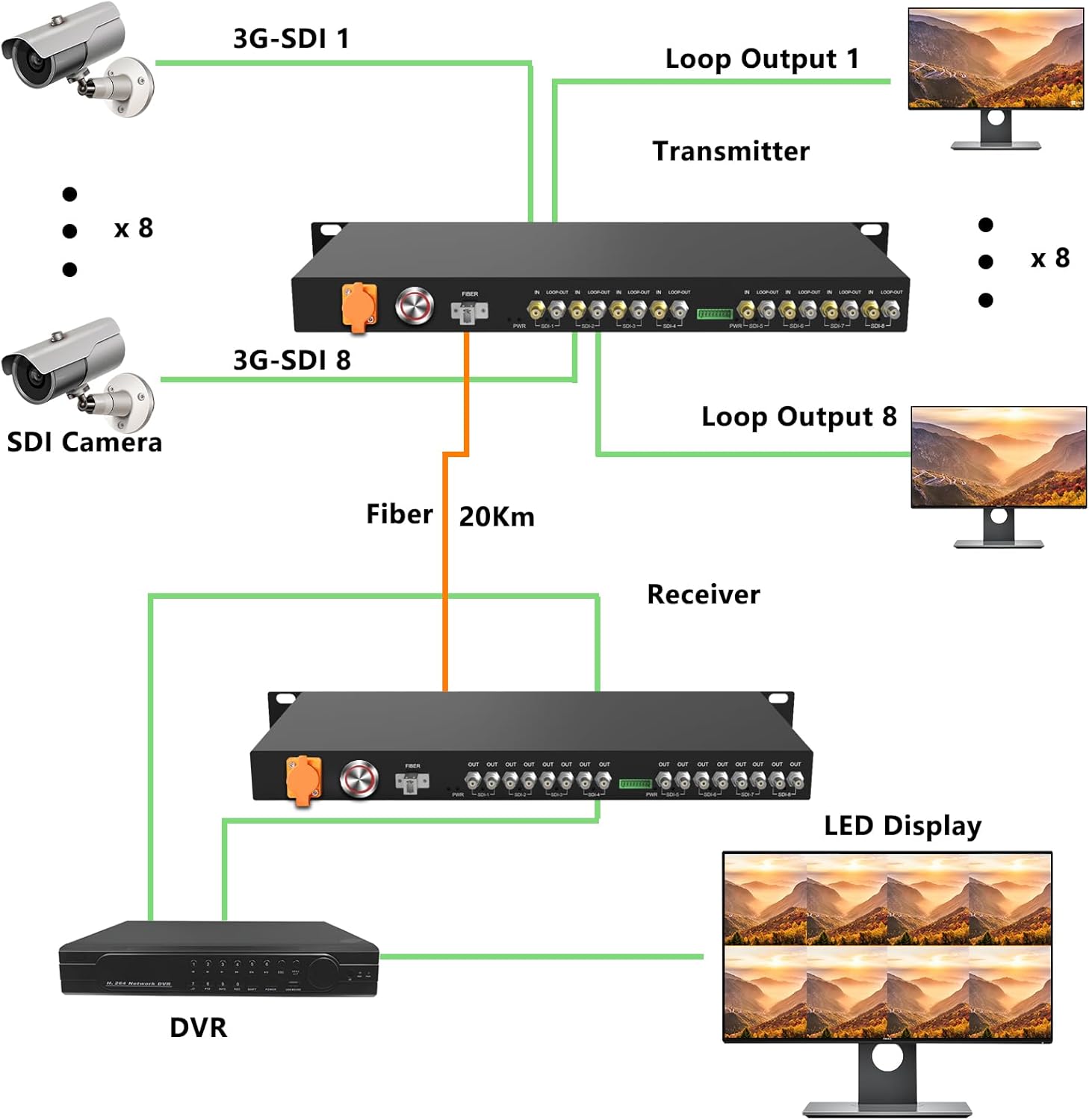

- [8Ch Loop output]—It support 8Ch local loop output, meeting the requirements of multi-device connection. And the transmission can up to 20KM.
- [Automatic Cable Equalization]—The Fiber Extender supports automatic cable equalization to ensure signal integrity. And adopt WDM/CWDM/DWDM technique.
- [Two-color BNC design]—The Fiber Extender adopts two-color BNC design, easy for identification of input and output signals (gold is the TX).
- [Standard 1U Rack-Mount Design]—Industry-standard 1U height fits perfectly into 19 in server and network cabinets, ideal for centralized installations.
- [-20℃~+70℃]—The 3G-SDI Fiber Converter’s working temperature is -20℃~+70℃, suitable for industrial-level environments.
- [Updated Structural Design] —Features an upgraded power port for improved connection stability, and a newly added rear handle for easier rack installation and removal.
| Interface | SDI |
|---|---|
| Brand Name | Lcantve |
| Item Weight | 5.8 Kilograms |
| Manufacturer | Lcantve |
| Material Type | Aluminum |
| Mounting Type | Rack Mount |
| Number of Pins | 3 |
| Number of Channels | 8 |
| Included Components | 1*8ch 3G-SDI TX,1*8ch 3G-SDI RX, 2*Power Adapter, 1*User Manual |
| Warranty Description | 2 years |
| Item Dimensions L x W | 19"L x 8.66"W |
| Maximum Supply Voltage | 220 Volts (AC) |
| Upper Temperature Rating | 70 Degrees Celsius |
